New Holland T1530 Tractor Service Repair Manual PDF

Covers: New Holland T1530 Tractor
Language: English
Pages: 849
Format: PDF
File size: 56mb
Compatibility: Windows/Mac/Tablet/Smartphone

This PDF service manual is the latest edition available and contains service procedures for the New Holland T1530 tractor. This service manual contains comprehensive procedures, illustrations, specifications and diagrams for the technician. Conveniently view and print the manual on your computer, tablet or mobile phone to service or repair the tractor to OEM standards. The service manual is also known as the repair manual or shop manual.

Topics:

• Description and Operation of Systems
• Specifications
• Torque Data
• Shibaura N844L Engine 2216cc
  • Specifications
  • Torque Specs
  • Compression Testing
  • Checks and Troubleshooting

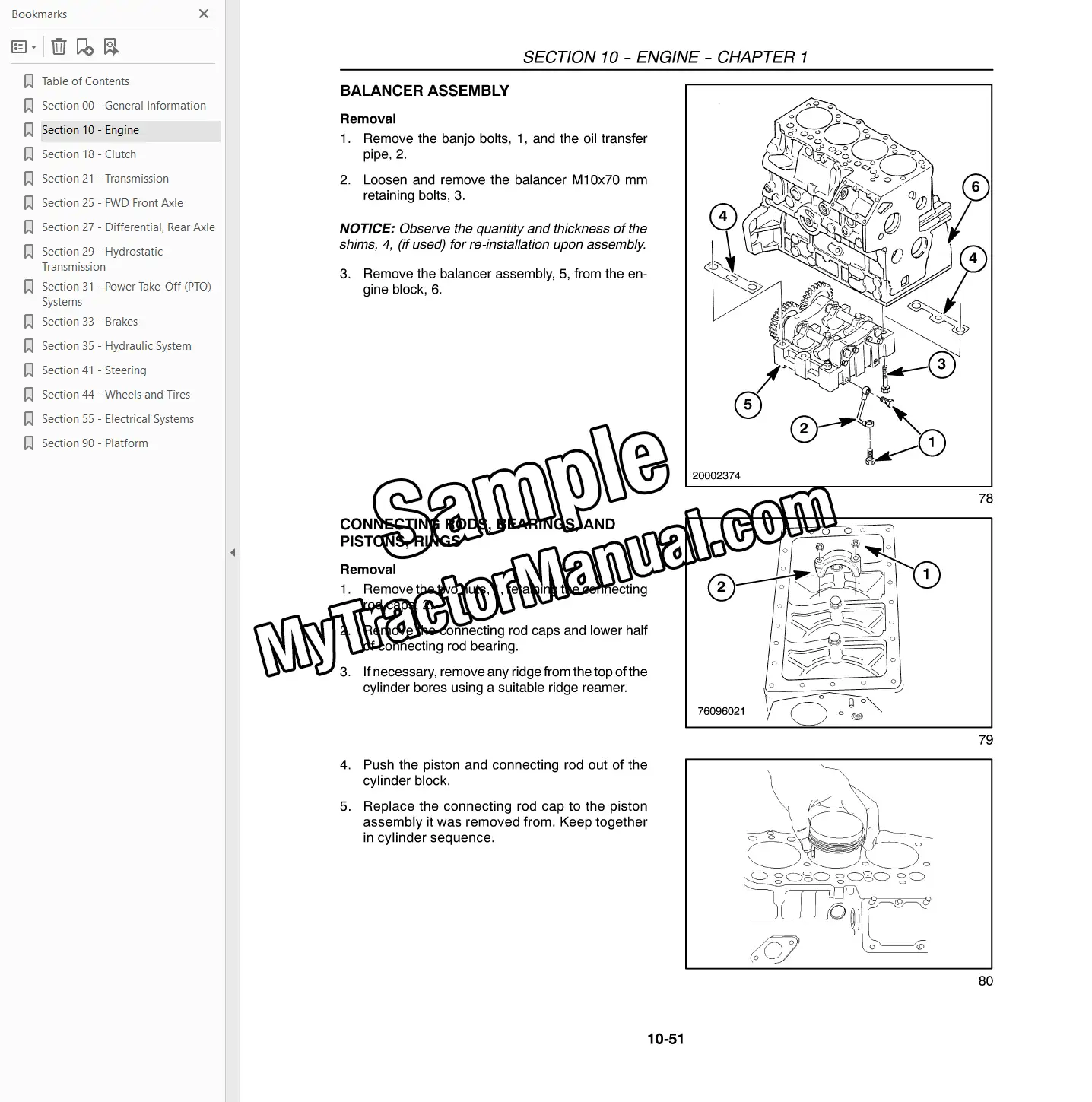

  • Overhaul

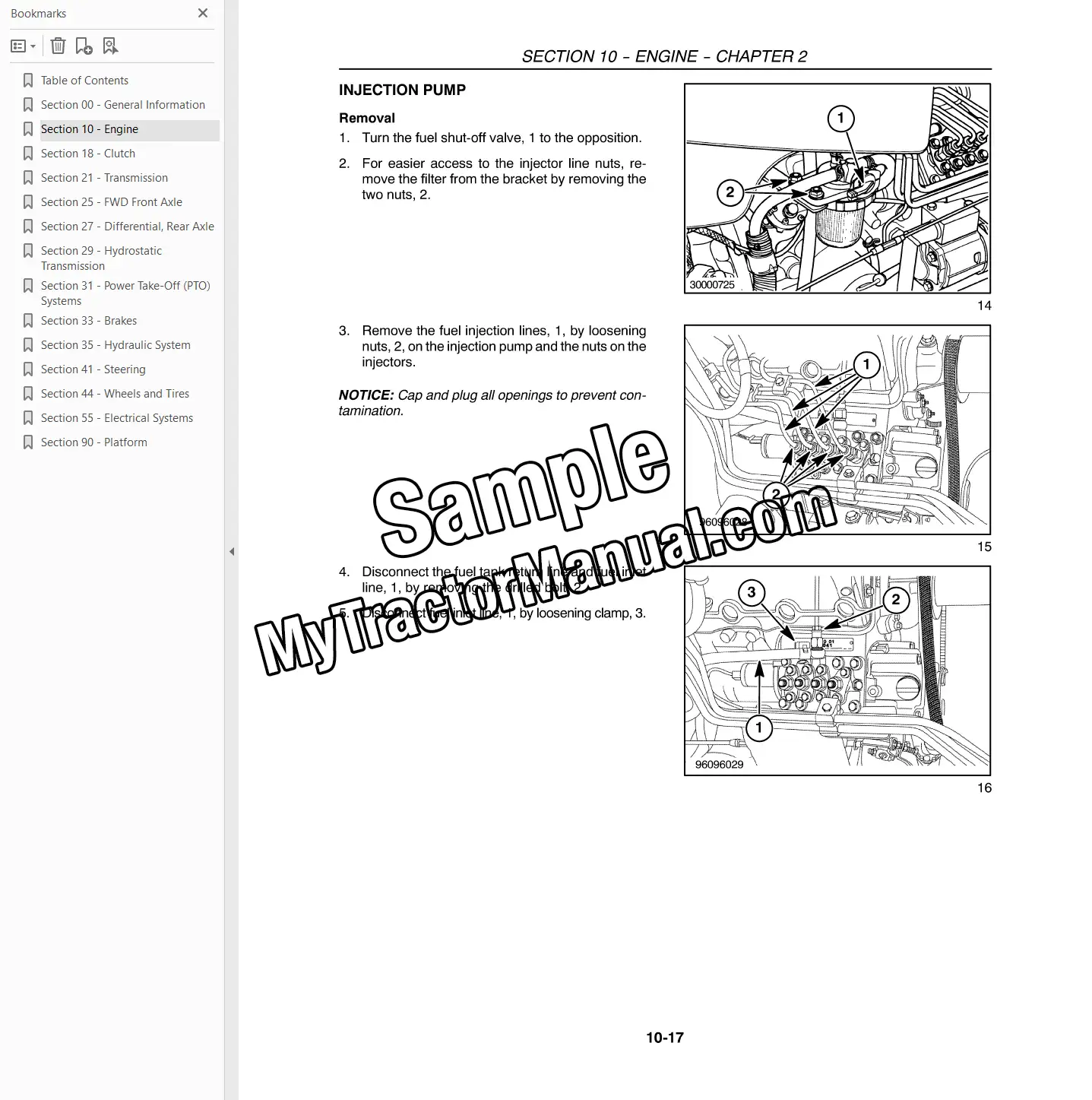

  • Fuel Injection Pump
  • Governor
  • Cooling System
  • Lubrication System
• Clutch

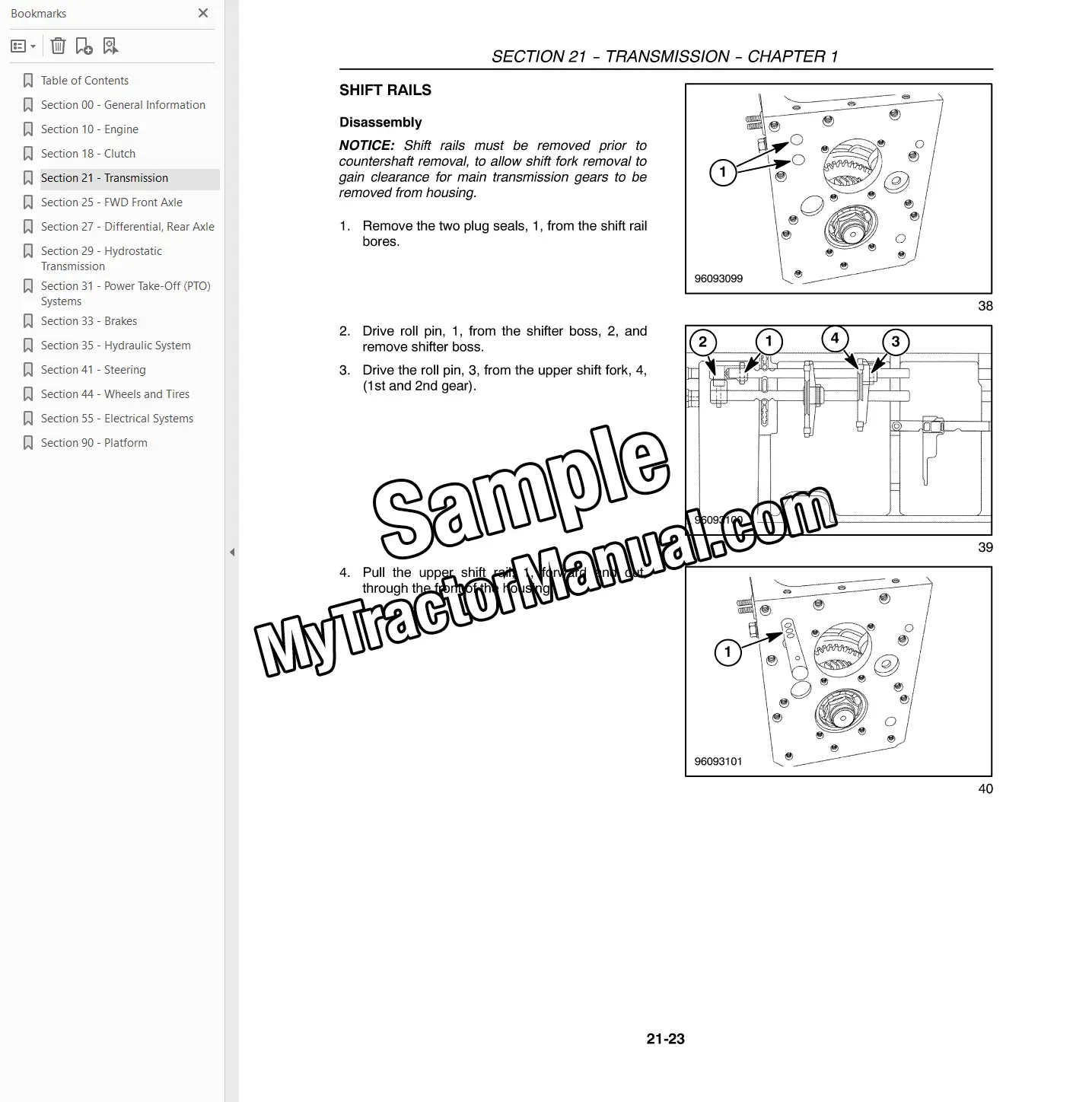

• SSS 12 x 12 Gear Transmission
• Hydrostatic Transmission
• FWD Front Axle
• Differential, Rear Axle
• Power Take-Off Systems
• Brakes
• Hydraulic System

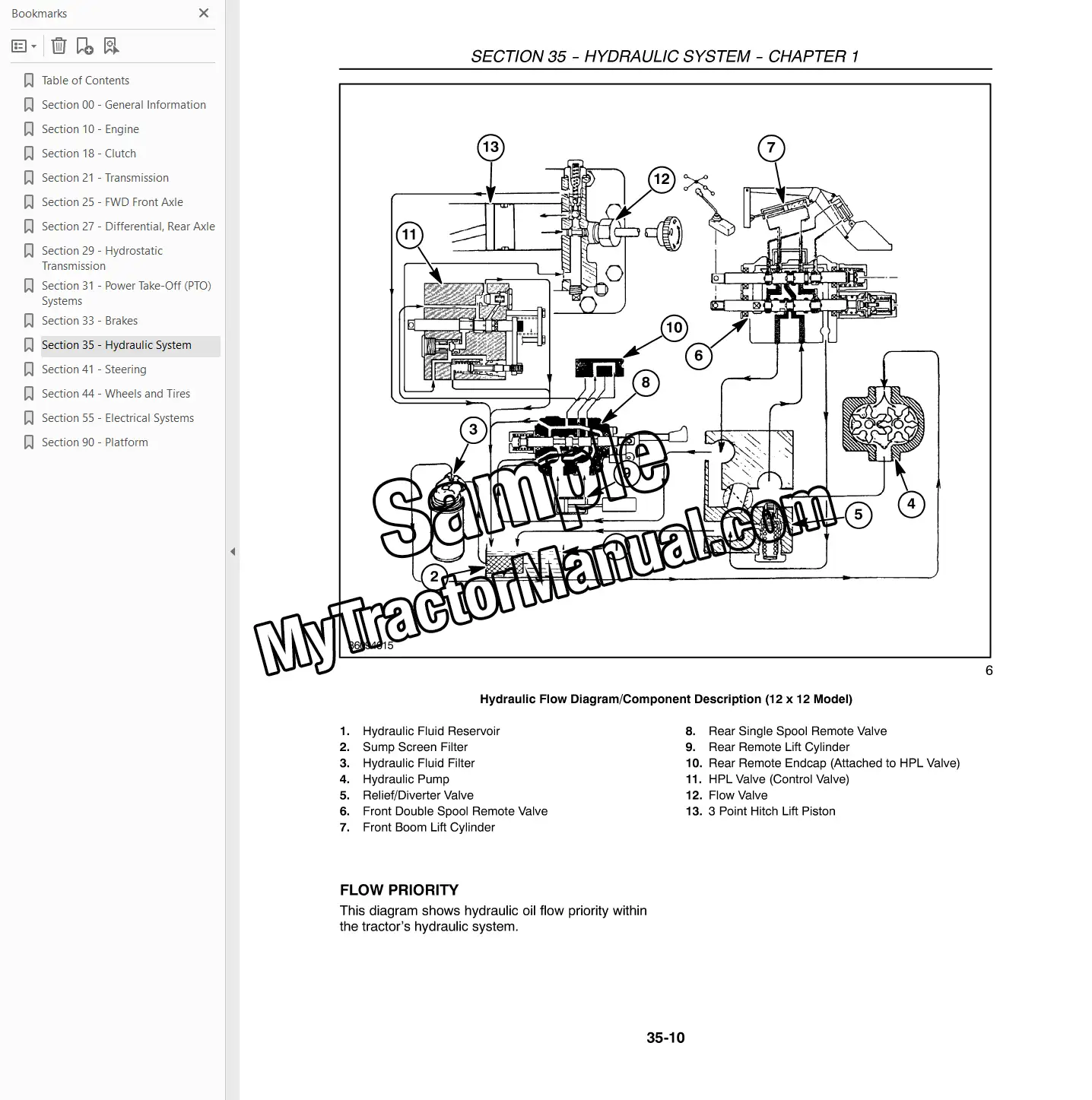

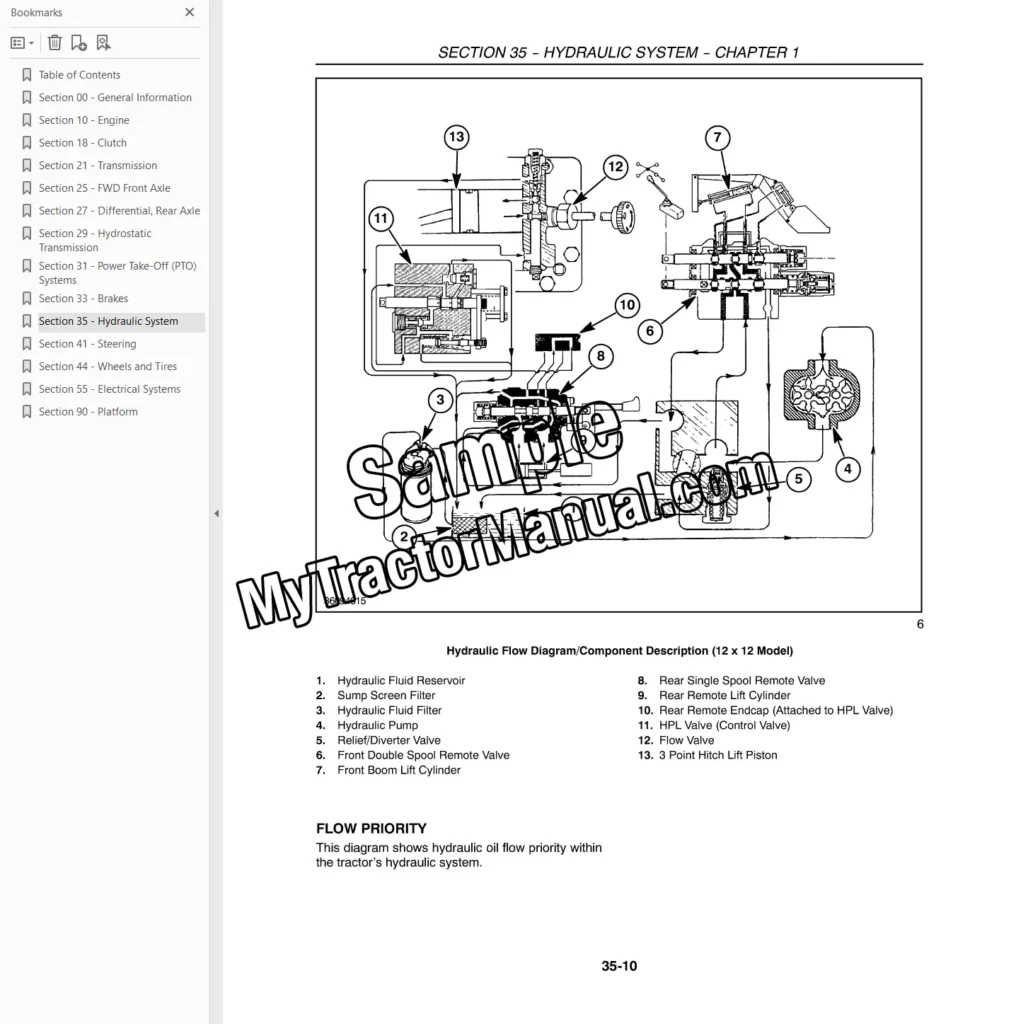

• Hydraulic Diagram
• Steering
• Wheels, Tires
• Electrical System

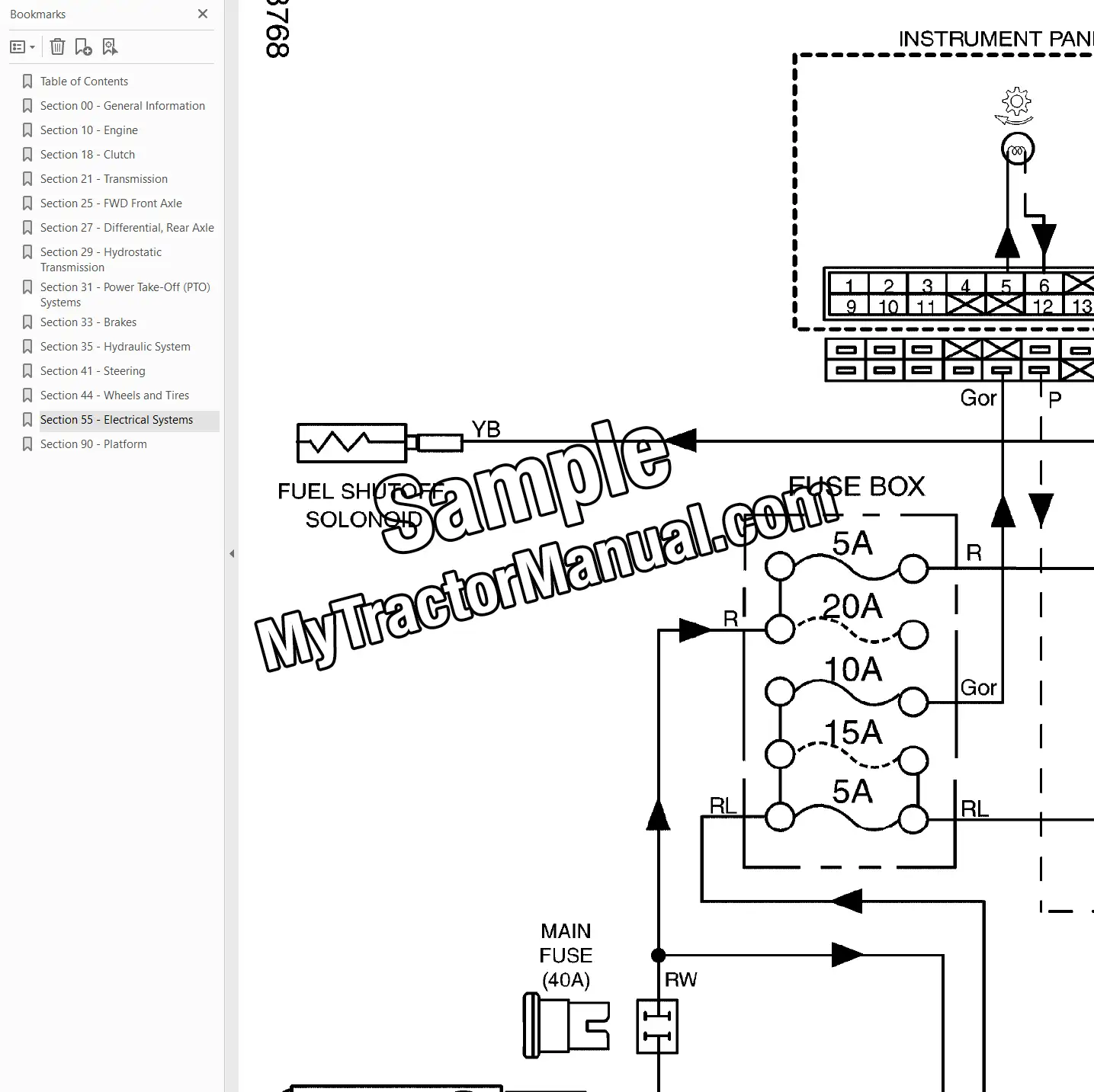

• Wiring Diagrams
• Panels, Fenders, Hood, Seat
• Operator Platform
• Instrument Panel

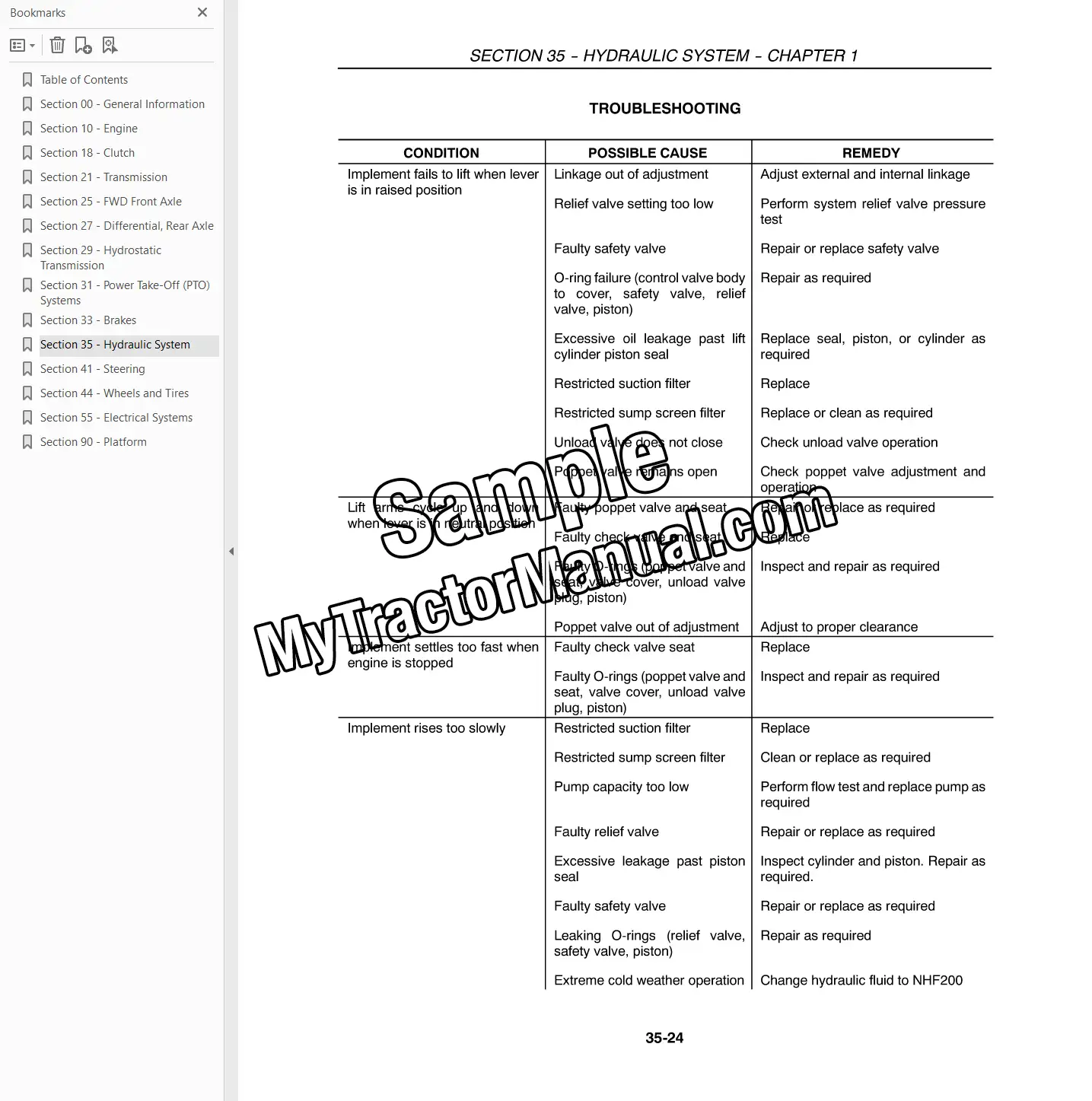

• Troubleshooting
• Testing and Adjusting
• and Much More…

Model T1530

ENGINE

• Type ………………………………. Diesel N844L
• Engine Gross Horsepower ……………… 33.6 kw (45.0 Hp)
• Cylinders …………………………… 4
• Bore ………………………………. 84 mm (3.31 in)
• Stroke …………………………….. 100 mm (3.94 in)
• Displacement ……………………….. 2.2L (135.2 cu in)
• Compression Ratio …………………… 22.5:1
• Firing Order ………………………… 1-3-4-2
• Low Idle Speed ……………………… 1050/1100 rpm
• Maximum Speed:
• High Idle ………………………….. 2800/2850 rpm
• Rated ……………………………. 2600 rpm
• Valve Clearance (Cold):
• Intake ……………………………. 0.20 mm (0.008 in)
• Exhaust ………………………….. 0.20 mm (0.008 in)

CAPACITIES

• Fuel Tank ………………………….. 39.0 liter/10.3 U.S. gal
• Cooling System ……………………… 5.6 liter/5.9 U.S. qt
• Engine Crankcase:
• With Filter …………………………. 6.0 liters/6.3 U.S. qt
• Rear Axle & Transmission (Includes Hydraulics)
• 9×3 (Gear) ………………………… 36.0 liter/9.5 U.S. gal
• HST ……………………………… 36.0 liter/9.5 U.S. gal
• Front Axle Final Reduction ……………… 0.8 liter/0.85 U.S. qt
• Differential Gear Case …………………. 5.3 liter/5.6 U.S. qt

How does this work?

It’s simple and only takes a few minutes. After purchasing this manual through our secure checkout system, a download link will be sent to the email address you specify at checkout. You have up to 90 days to retrieve and save the PDF to your computer, tablet, or smartphone for permanent viewing.
