Ford 230A, 340, 445, 530A, 540, 545 Tractor Repair Manual

Covers: Ford 230A, 231, 340, 340A, 340B, 445, 445A, 530A, 531, 532, 535, 540, 540A, 540B, 545, 545A tractors

• 1975-1983 tractors w/ 3 cylinder engine
• Basic tractor only (without attachments)

Pages: 800
Format: PDF
File size: 124mb
Compatible with: Windows/Mac/Tablet/Smartphone

This repair manual provides information for the proper servicing and overhaul of ’75-’83 Ford 3 cylinder industrial tractor models. It is an essential reference for anyone working on the tractor. The models covered were equipped with a diesel or gas engine – both are covered in this manual. The manual is divided into twelve parts, each sub-divided into chapters. Each chapter contains information on general operating principles, detailed inspection and overhaul and, where applicable, troubleshooting, special tools and specifications.

Download the latest digital edition of the Ford factory shop manual for your computer, tablet, or smartphone within minutes. Whether you’re in the shop, field, or at home, you can view and print the repair information you need to get the job done.

Topics:

• Engine Specifications
• Engine Description and Operation
• Engine Mechanical (Gas and Diesel)

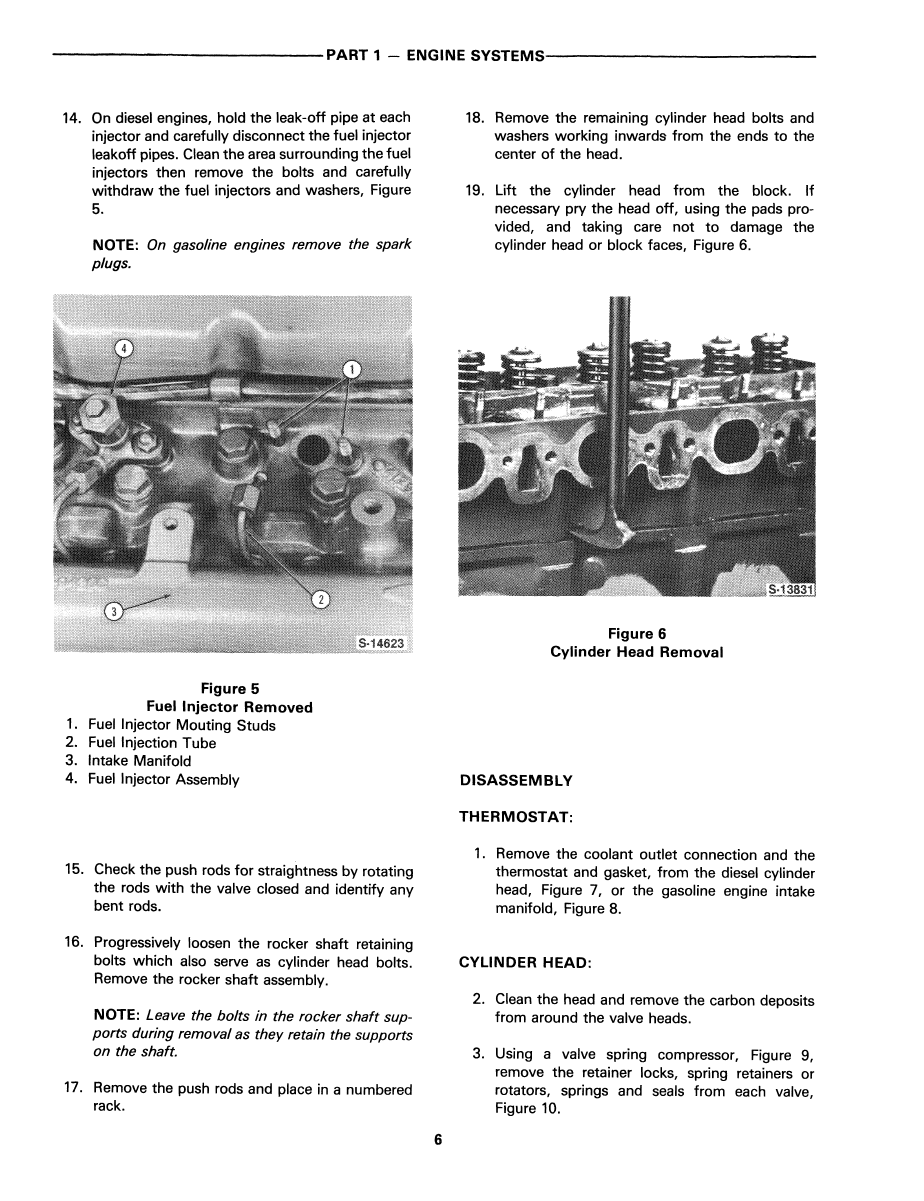

• Engine Overhaul
• Engine Troubleshooting
• Cooling System

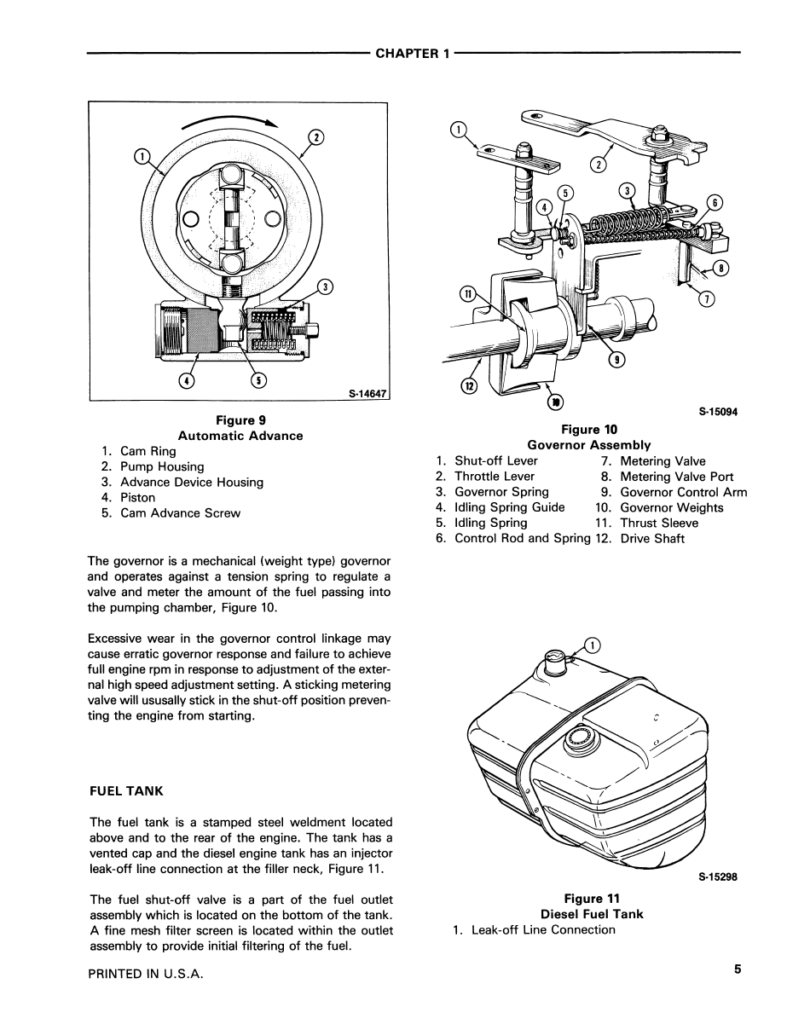

• Fuel Systems
• Electrical System Specifications and Troubleshooting

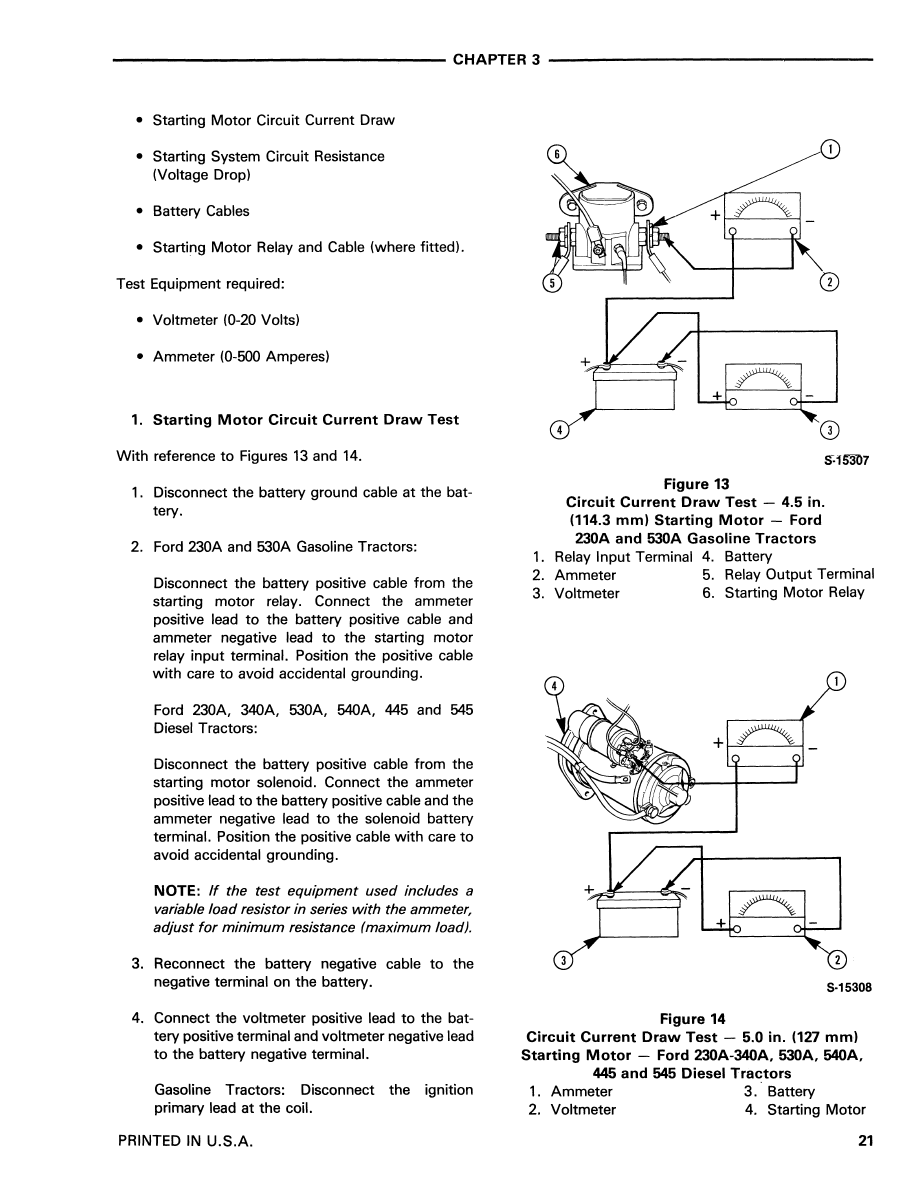

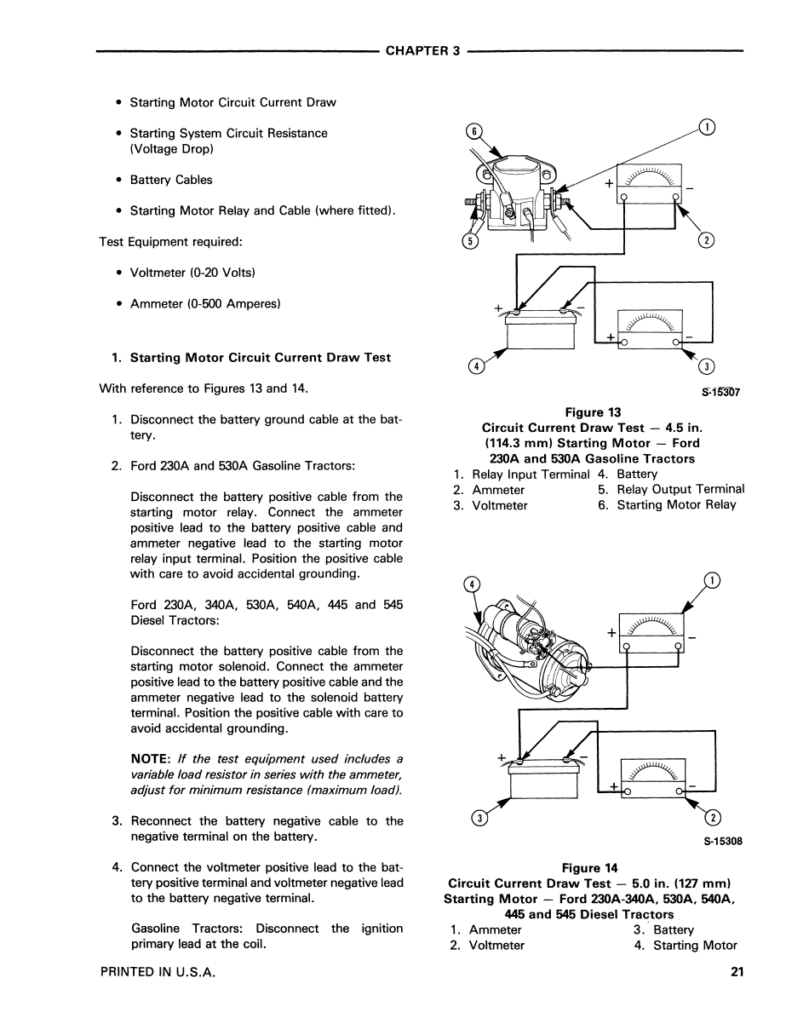

• Starter/Alternator/Ignition
• Wiring & Circuits
• Lighting, Switches and Instrumentation
• Single/Double Clutch
• Servicing Clutch Associated Parts
• 6-Speed Transmission
• 8-Speed Non-Synchromesh Transmission
• 8-Speed Synchromesh Transmission
• 6×4 Manual Reversing Transmission
• Power Reversing Transmission
• 4×4 Torque Converter Drive Synchromesh Transmission

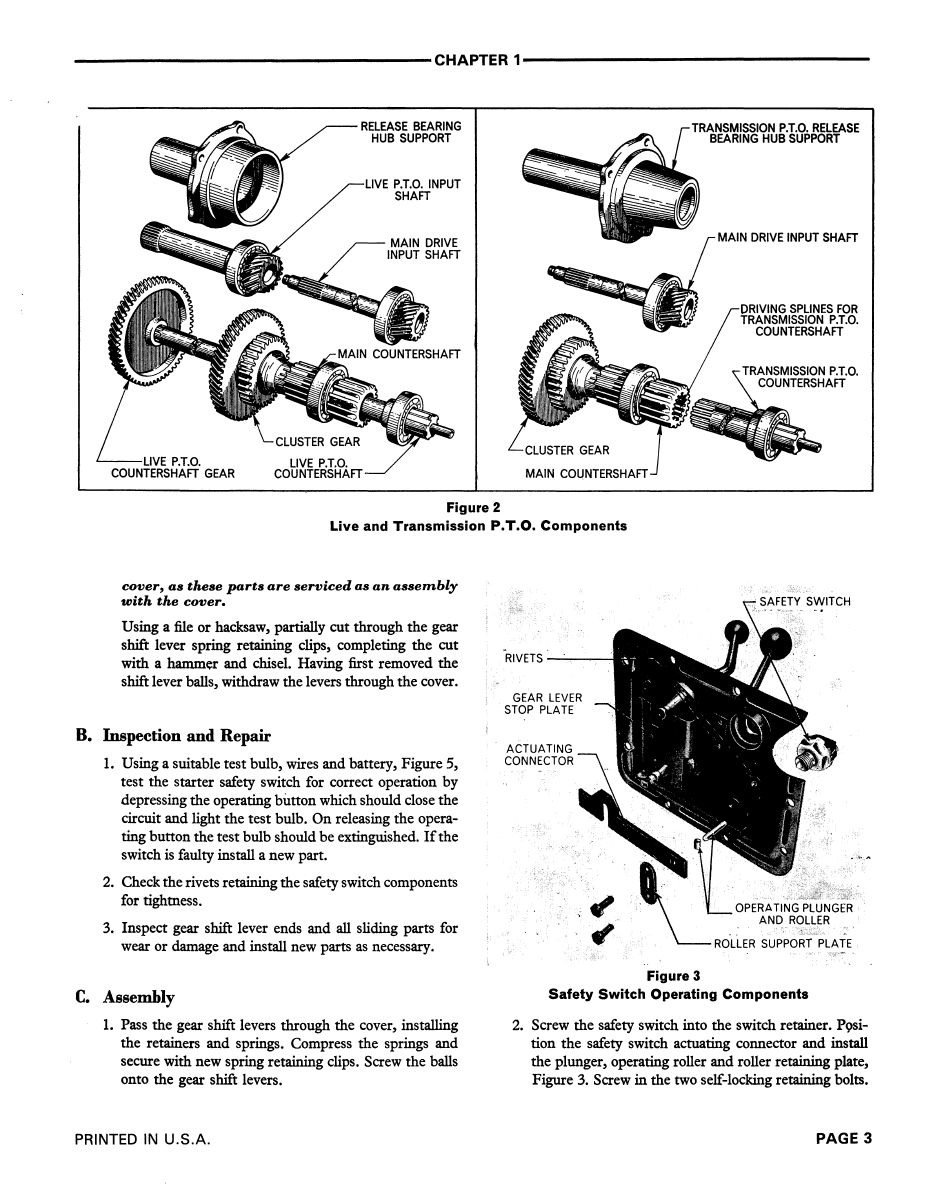

• PTO
• Rear Axle and Brakes
• Differential
• Drive Pinion
• Planetary Gear Assembly and Axle Housing
• Front Axle and Spindles
• Front Gearbox and Transfer Case
• Driveshaft
• Manual Steering Gear
• Power Steering
• Hydrostatic Steering
• Hydraulic System Circuits
• Hydraulic Pumps
• Remote Control Valves
• Separating The Tractor
• Wheels and Tires
• Troubleshooting
• Special Tools
• Adjustments
• Torque Specs
• And Much More…
